SKU: 0002222

Code Foil Aluminium Mast Kit

$393.00
$393.00
Sale Sold out
/
Shipping calculated at checkout.
Size:
This is a pre order item. We will ship it when it comes in stock.
Pairs well with
In stock and ready for shipping

Precision engineered. Premium performance at an accessible entry point.

The Code Aluminium Mast is a purpose-built design delivering Code-level stiffness, fit, and performance in an aluminium construction, while significantly reducing the overall cost of a complete foil setup.

This is the first aluminium mast from Code that is compatible, rigid, and refined, making it an ideal foundation for riders entering the Code ecosystem across all disciplines.

The Code Aluminium Mast features a parallel extruded aluminium section engineered for maximum stiffness and a precise, snug fit across all joints. Careful attention to geometry and tolerances eliminates play and delivers a solid, confidence-inspiring ride feel.

With a 120mm chord and 18.7mm thickness, the mast strikes a carefully balanced profile that offers excellent rigidity, efficiency, and durability.

ASSEMBLY
View Assembly Instructions
📄Download Aluminium Mast Brochure

Components

Please note that components of the Aluminium Mast are sold as a set.
  • Aluminium Mast Stem (75cm or 80cm)
  • Base Plate
  • Top Socket
  • Aluminium Bolt Kit Set

SIZES

75cm

Ideal for shallow water, prone surf, downwind, and learning environments. A forgiving and versatile option with excellent control.

80cm

The all-rounder, offering increased clearance and stability across a wide range of disciplines and conditions.

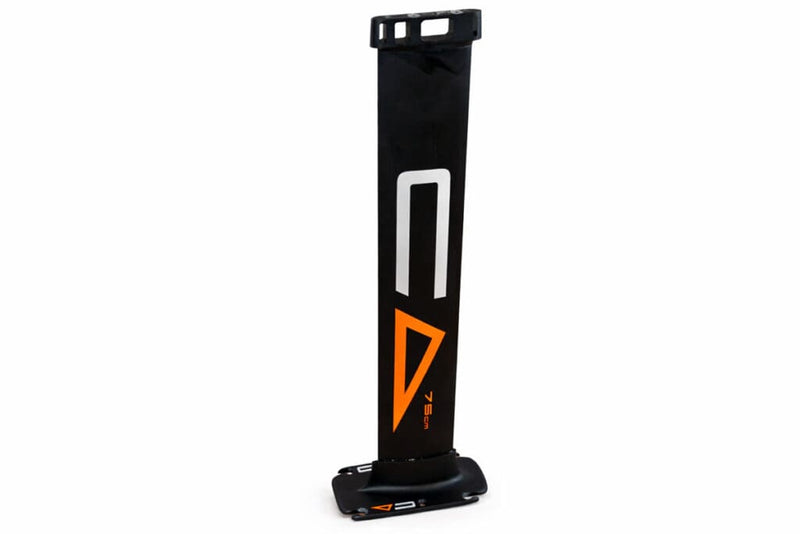

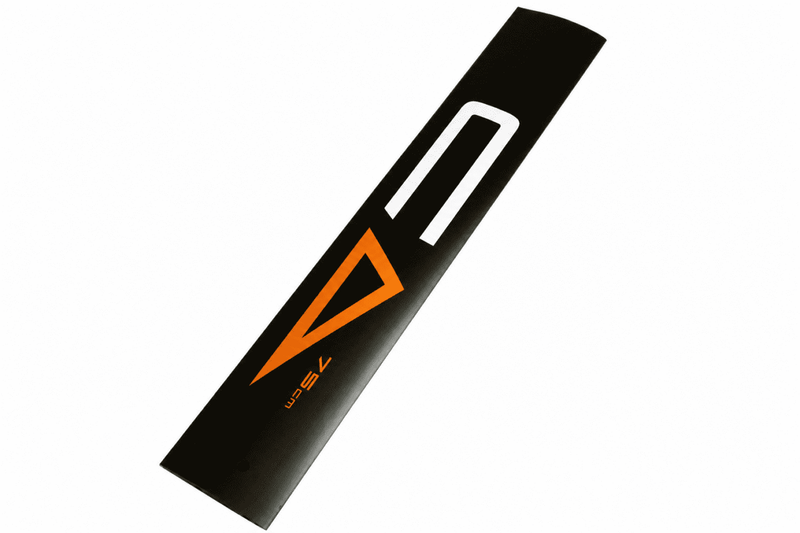

Aluminium Mast Stem

A high-stiffness aluminium mast.

Parallel extruded aluminium profile optimised
for rigidity and efficiency.

Stiff wall construction balanced with minimal
material usage to reduce overall weight.

Carefully engineered balance between
performance, strength, and responsiveness.

Trailing edge machined to its thinnest
allowable tolerance for maximum
hydrodynamic efficiency.

Available in 75cm or 80cm

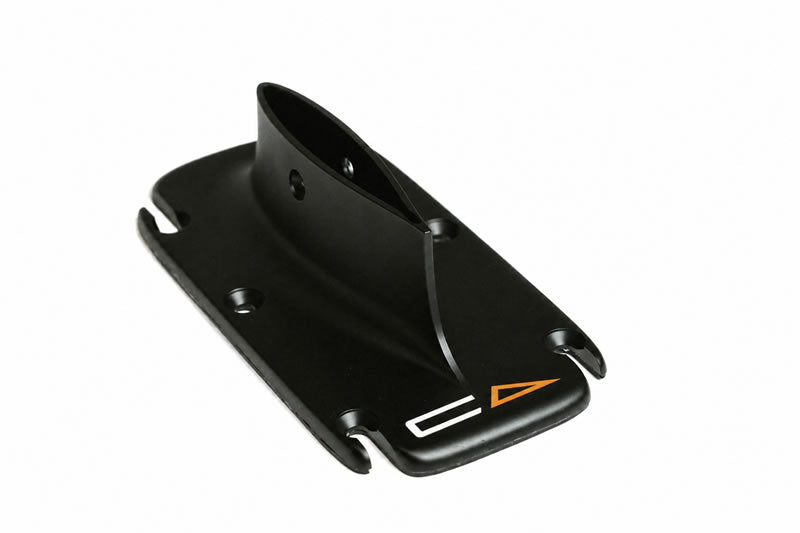

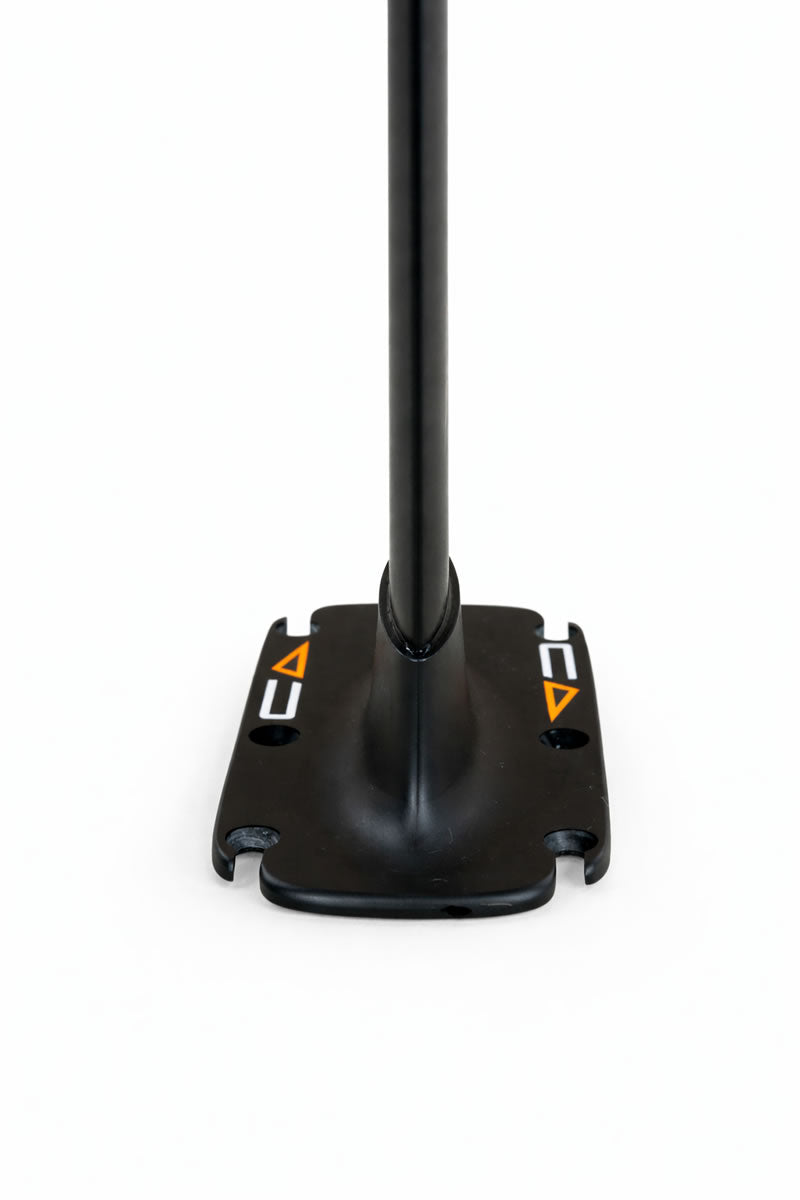

Base Plate

Slotted base plate design improves
compatibility and setup adjustment.

Deep female mast connection increases
rigidity and load distribution

Hole spacing designed to adapt
seamlessly with Foil Drive systems

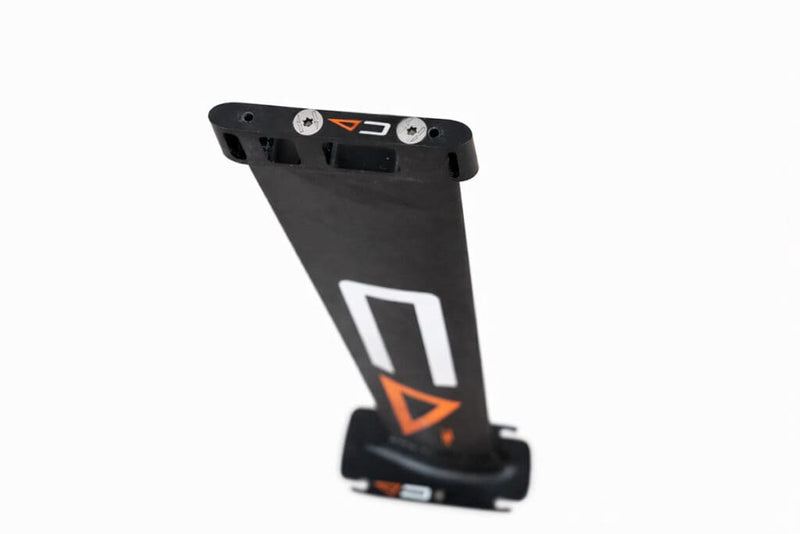

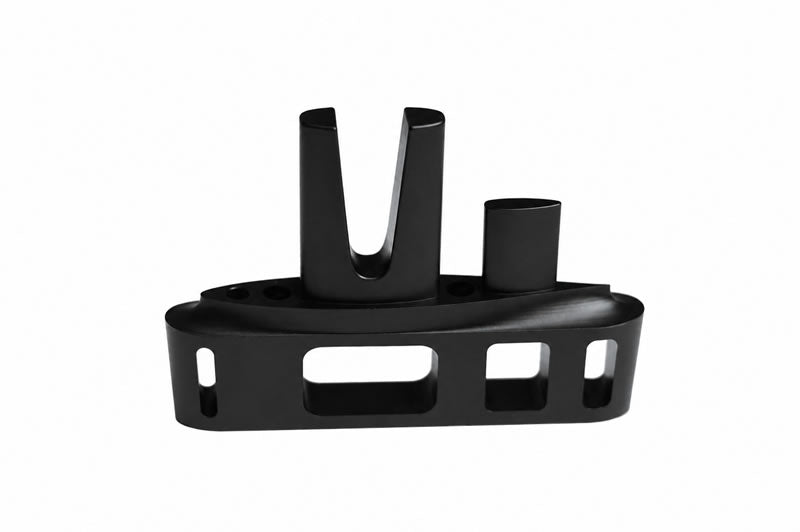

Top Socket

Long interlocking teeth increase structural
rigidity and load transfer.

Deep connection architecture designed to
eliminate play and maximise
responsiveness

Tight tolerance fit minimises movement
between components.

Fuselage bolts lock the front wing directly
into the socket, stem, and through the
mast system for increased structural
integration.

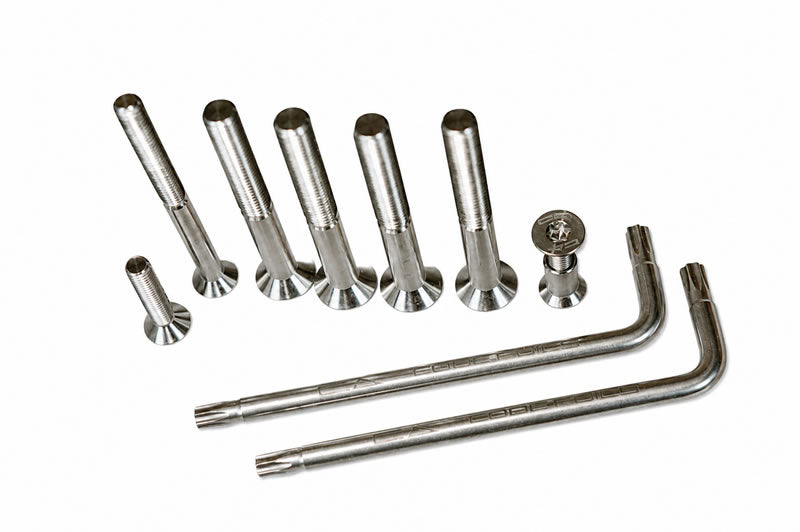

Aluminium Bolt Kit Set

Custom Code Foils Mesh Bolt Bag
4 x M8 x 75mm T30 Torx Bolt
1 x M6 x 80mm T30 Torx Bolt
1 x M6 x 30mm T30 Torx Bolt
1 x M6 x 20mm T30 Torx Bolt
1 x M6 x 15mm T30 Torx Hollow Bolt
4 x M8 x 28 mm Track Bolts
1 x Zinc Plated T30 Tool
